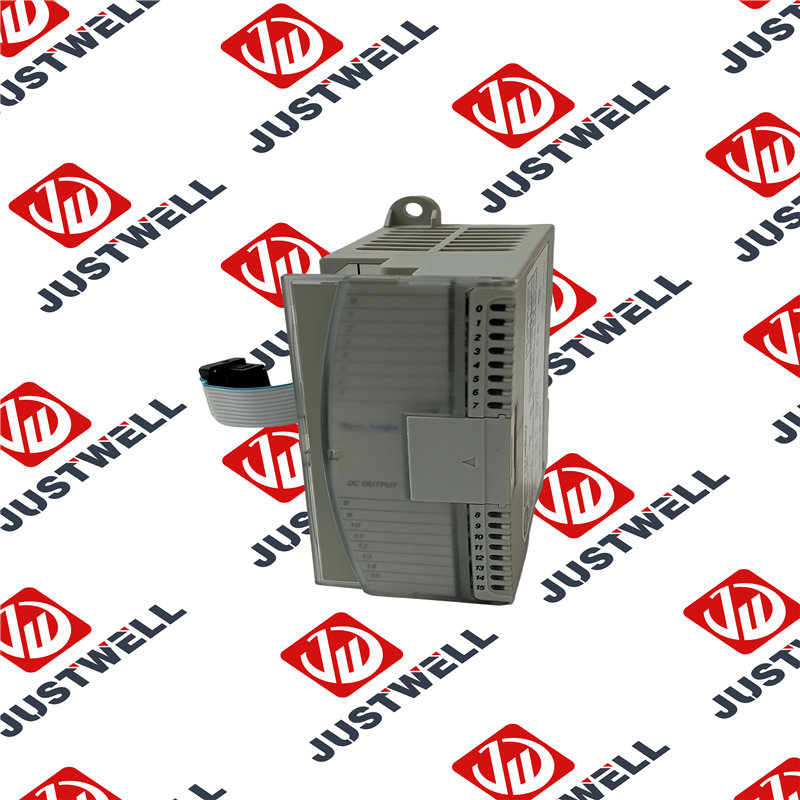

1762-OB16 A-B MicroLogix 16-Point 24V DC Output Module
$ 95.67
- Free Delivery Over $30 All Products
- 30 days easy returns if you change your mind
- Order before noon for same day dispatch
Guaranteed Safe Checkout
- Description 1762-OB16 A-B MicroLogix 16-Point 24V DC Output Module Product Dimensions： Product Description (Detailed Explanation) The 1762-OB16 provides 16 digital outputs in a compact, modular form factor. It is a Sourcing (Source) type module, meaning that when an output is energized, the module “sources” or supplies positive voltage from the VDC user supply to the connected field device. The module connects to the right side of a MicroLogix controller or a previous I/O module via an integrated high-speed bus ribbon cable. It features a removable terminal block with a finger-safe cover, allowing for easy wiring and maintenance without disturbing the rest of the PLC rack. Product Parameters (Technical Specifications) Parameter Category Specification Number of Outputs 16 Points Output Type Solid-State Transistor (Source) Operating Voltage Range 20.4V to 26.4V DC Backplane Current (5V DC) 175 mA (Maximum) Backplane Current (24V DC) 0 mA Continuous Current per Point 0.5 A @ 30°C / 0.25 A @ 55°C Continuous Current per Module 8.0 A @ 30°C / 4.0 A @ 55°C Signal Delay (Off to On) 0.1 ms Signal Delay (On to Off) 1.0 ms Product Advantages (Key Benefits) High Density: Provides 16 channels in a very slim footprint, saving valuable space in small control cabinets. High-Speed Switching: Because it uses transistor technology rather than mechanical relays, it can handle high-frequency switching tasks with millisecond response times. Enhanced Reliability: No moving internal parts mean the module is not subject to mechanical wear and tear, making it ideal for applications with frequent cycling. Easy Expansion: The flat ribbon cable design allows for quick “plug-and-play” expansion without the need for separate backplane hardware. Visual Diagnostics: Features a clear LED display panel on the front, providing real-time status indication for each of the 16 output channels. Precautions (Important Notes) No Hot Swapping: Power to the PLC and the expansion bus must be turned OFF before connecting or disconnecting the module. Failure to do so can result in permanent damage to the controller’s I/O bus. Inductive Load Protection: When driving inductive loads (such as solenoid valves or DC contactors), it is highly recommended to use an external surge suppressor (e.g., a 1N4004 diode) to protect the transistor from voltage spikes. Thermal Derating: The current capacity of the module halves as the temperature rises from 30°C to 55°C. Ensure proper enclosure ventilation to maintain rated performance. Common Terminal Limitation: All 16 points share a common power source. Ensure that the total current load does not exceed the 8.0A module limit. Product Applications (Typical Use Cases) Packaging Machinery: Controlling fast-acting pneumatic solenoids for sorting, pushing, or labeling. Small Assembly Cells: Driving 24V DC pilot lights, buzzers, and small DC relays on operator consoles. Material Handling: Managing divert arms and gate actuators on high-speed conveyor systems. HVAC Control: Actuating dampers and small DC fans in building automation units where silent operation (no relay clicking) is preferred. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： AB 1756-0B16E AB 1756-DMD30 AB 1756-IB32 AB 1756-0F4 AB 1756-DNB AB 1756-IB32/A AB 1756-0X8I AB 1756-DNB/A AB 1756-IF16 AB 1756-A10 AB 1756-DNB/A/B AB 1756-IF16/A AB 1756-A13 AB 1756-DNB/B AB 1756-IF161 AB 1756-A17 AB 1756-DNB/C1756-DNB/D AB 1756-IF16H AB 1756-A4 AB 1756-DNB/D AB 1756-IF4FXOF2F AB 1756-A7 AB 1756-DNB1 AB 1756-IF6CIS AB 1756-BA11 AB 1756-EN2T AB 1756-IF6I AB 1756-BA2 AB 1756-EN2T/C AB 1756-IF8 AB 1756-CFM AB 1756-EN2T/D AB 1756-IF8H AB 1756-CN2 AB 1756-EN2TR AB 1756-IF8U AB 1756-CN2/B AB 1756-EN2TR/B AB 1756-IG16 AB 1756-CN21 AB 1756-EN3TR AB 1756-IH16I AB 1756-CN2R AB 1756-ENBT AB 1756-IM16I AB 1756-CN2R/B AB 1756-ENBT/A AB 1756-IM16I1203-CN1 AB 1756-CNB AB 1756-ENET AB 1756-IN16 AB 1756-CNB/A/B/C/D AB 1756-EWEB AB 1756-IR6I AB 1756-CNB/D AB 1756-HSC AB 1756-IRT8I AB 1756-CNB/E AB 1756-HSC1 AB 1756-IT6I AB 1756-CNBR AB 1756-HYD02 AB 1756-IT6I2 AB 1756-CNBR/A/D AB 1756-IA16/A AB 1756-IV16 AB 1756-CNBR/D AB 1756-IA32 AB 1756-IV32 AB 1756-CNBR/E AB 1756-IB16 AB 1756-L1M1 AB 1756-CPR2 AB 1756-IB16/A AB 1756-L35E AB 1756-DHRIO AB 1756-IB16D AB 1756-L55M12 AB 1756-DHRIO/C AB 1756-IB16I AB 1756L55M13 AB 1756-DHRIO/D AB 1756-IB16ISOE AB 1756-L55M13 AB 1756-DHRIO/E AB 1756-IB16SOE AB 1756-L55M14 AB 1756L55M22 AB 1756-L55M16 AB 1756L55M16 AB 1756-L55M23 AB 1756L55M23 AB 1756-L55M22
