In Stock

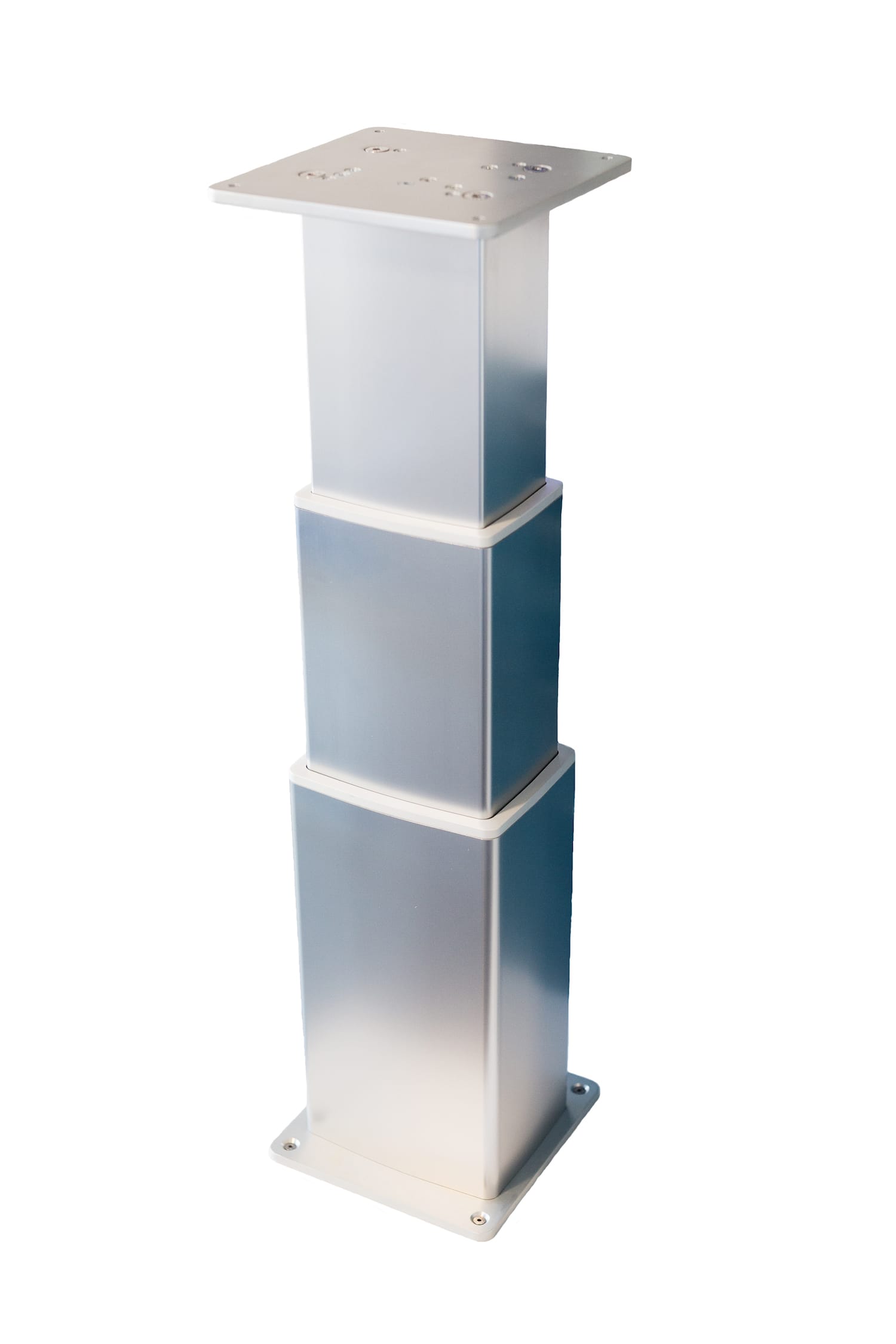

Electric table leg, 3 rectangular stages, aluminum – 12V – NL2388
$ 98.98
- Free Delivery Over $30 All Products
- 30 days easy returns if you change your mind
- Order before noon for same day dispatch
Guaranteed Safe Checkout
- The NL2388 is a rectangular-section electric table leg designed for modern yachts and boats, making it easy to transform a dining table into a coffee table or sunbathing area, and vice versa. Thanks to its sturdy anodized aluminum construction, it stands up perfectly to marine environments. This table lift is ideal for spaces requiring maximum flexibility, while offering neat design and reliable performance, all at a very competitive price. Highlights include: Adaptability to different uses thanks to an adjustable height range. The foot can be stopped at the desired level between its maximum low and high positions. Extremely robust, with a dynamic load capacity of up to 500 Nm (50 kg) and a static load capacity of up to 2000 Nm (200 kg). Fast lifting speed for smooth, effortless adjustment. Compatible with marine environments thanks to its corrosion-resistant materials. Specifications Dimensions : Retracted height: 358 mm (14.094″) Max height: 758 mm (29.8425″) Stroke: 400 mm (15.748″) Table top mounting plate: 200x200x8 mm (7.874 x 7.874 x 0.315″) Deck mounting plate: 200x200x8 mm (7.874 x 7.874 x 0.315″) Total weight: 11.2 kg (24.7 lbs) Maximum load : Dynamic: 50 kg Static: 100 kg (compression locking 200 kg) Speed : No-load: 18 mm/s (0.71″/s) Under load: 9 mm/s (0.35″/s) Power supply: 12V DC / 10A Materials: 20-micron anodized aluminum (colorless). Installation / Maintenance Installation: Connect the lift to a 12V power supply via a MOM OFF MOM switch to control movement(NL1494). Synchronization with another leg of the same model is possible for use under large table tops. In this case, an NL2120 synchronized control box is required. The NL2120 box is also a radio receiver and allow to remote control the leg, or paired legs, via an AT5189 remote control. If installed with as a single pedestal (no synchronization) and needing remote control, then combine this table leg model with the NL1270 box. Make sure that cabling does not exceed 5 meters for optimum performance. And in the case of synchronized pedestals, be sure to balance cable lengths between the table lifts and control box, never exceeding 5 linear meters. Recommended care : Clean aluminum surfaces regularly with clear water. Apply silicone spray or lanolin to moving parts to prevent excessive friction. Our review ✔ Pros Robust, durable design adapted to the marine environment Quick, precise height adjustment Easy to install and use ✘ Cons Accessories such as switch, remote control or control box not included by default No possibility of changing the color for orders of less than 10 pieces Conclusion The NL2388 electric lift combines functionality and design to meet the needs of demanding users. Whether for a yacht or a high-end residential installation, it offers exceptional versatility and robustness. It’s a smart choice for modernizing and optimizing your indoor and outdoor spaces. Good to Know The NL2388 can be synchronized with a second foot for larger tables. Accessories, such as a control box or remote control, are available as optional extras to further personalize your installation. Model The NL2389 is the 24V DC version of the NL2388 table lift. All these elements operate with dry contacts and are therefore compatible, via converter box, with centralized management systems and protocols such as: NMEA 2000, CAN bus. English spoken On parle Français Call us: 33 6 33 30 44 50 Chat on WhatsApp Contact us by e-mail
