LM2596 DC 3.0A Step-Down Adjustable Module with Red LED Voltmeter
$ 4.20
- Free Delivery Over $30 All Products
- 30 days easy returns if you change your mind
- Order before noon for same day dispatch
Guaranteed Safe Checkout

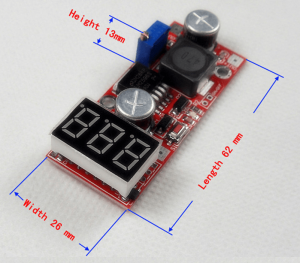

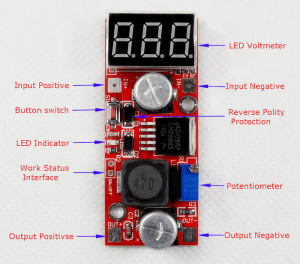

- Description Product Description A Switch mode DC/DC Buck supply with Digital Voltmeter, capable of supporting your power-hungry projects. Get any voltage between 1.3V to 25V (Input voltage must be greater than output voltage) Features Voltmeter that can show Input and output voltage (Press Push Button to toggle Input Monitoring, Output Monitoring or Both) Led Indicator lights when Input Voltage is being Displayed on Voltmeter Push Button sets Display Mode Multi-Turn pot adjusts voltage (1.3V – 25V) ON/OFF header lets user turns OFF the Regulator Ouput Current Maximum 3.0A (Nominal Value for current is 2.0A) Technical Details In : Input positive In-: Input negative Out : Output positive Out-: Output negative weight: 20g Dimensions: 62 *26 *14mm(length*width*height) Ripple peak: About 100mV Display color: Red Input voltage: 4.5-28V Output power: 15W maximum Output voltage: 1.3v-25v (step-down mode, the input voltage must be 2v higher than the output voltage) Output current: 3.0A (Max) Ripple frequency: About 150KHZ Voltage meter accuracy: ± (0.5% 1 digit) Static power consumption: Typical about 20mA Operating Instructions Output voltage mode: Default display, LED indicator OFF (Voltmeter Displays Output voltage) Input voltage mode: Press button to monitor Input Voltage. In this mode LED indicator is ON. Alternating mode : Press button again input/output voltage is displayed alternately (3 second output Voltage and then 3 seconds Input Voltage. Press button again, to switch to default output voltage display mode. Turn OFF module: Keep pressing the button (for 4 seconds) until the display turns OFF and Led turns ON. In this mode module output voltage are turned OFF. Notes: For correct output regulation the Input Voltage Must be Higher than the output (set point) voltage. Applications Solar Power Regulator, Solar Panel Voltage Regulator. Can regulate varying PV (Solar panel) input to any fixed voltage (1.3V to 25V) Robot Power Supply for Digital Circuits (3.3V, 5V, or Adjustable ) and Motor Drivers DC Power Supply for Amplifiers Compact Low weight power supply for Quadcopter and other flying robots. Maybe used as LAB Power Supply Solar Cell Phone Charger Documents and Downloads Datasheet: LM2596S Datasheet Package Includes 1x LM2596 DC 3.0A Step-Down Adjustable Module with Red LED Voltmeter LM2596 DC 3.0A Step-Down Adjustable Module with Red LED Voltmeter in Rawalpindi, Islamabad Pakistan. DIY Solar Cell Phone Charger.
