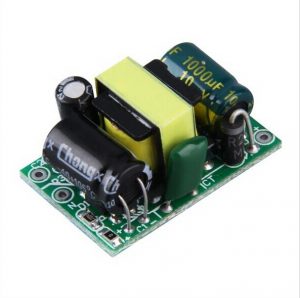

5V/700mA 220V AC-DC Flyback Power Regulator Module
$ 0.74
- Free Delivery Over $30 All Products
- 30 days easy returns if you change your mind
- Order before noon for same day dispatch
Guaranteed Safe Checkout
- Description This is small 5V/700mA 220V AC-DC Flyback Power Regulator Module that is intended for providing DC 5V from Mains 220VAC/230VAC power line. It can also convert DC High input voltage to 5V DC output as well. Applications The module is perfect for Powering Sensors such as ESP8266 based WiFi Sensor Digital IP Cameras 5V LED Light bulbs or strips Digital Door Bell Features With temperature protection Over current protection and short circuit protection High Side and low side voltage isolation Wide voltage input : AC85 ~ 265 v Can also operate on DC 100V to DC 370V input voltage Output Power Indicator LED Technical Specifications Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Power 3.5 W Output voltage: DC 5V ( / – 0.2 V) Output range: 4.8~5.2v Min current :0mA Max current :700mA Peak current: 800mA Ripple wave: 60mV Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100ms Output over power protection:YES Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Operating temperature -20~60° Relative humidity 40-90%RH Size: 3.0 cm x 2.0 cm x 1.8cm Weight: 10.0gm [!] Warning Be careful when operating the module at high voltage input power. The input capacitor charge can give electrical shock. Use fuse protection and safety gloves while handling high voltage power supplies. Documents and Downloads THX208 PWM Power Switching Controller Datasheet and Description Package Includes 1x 5V/700mA 220V AC-DC Flyback Power Regulator Module
