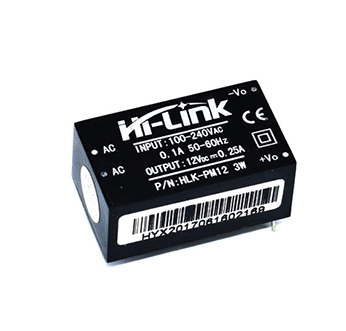

12V 0.25A Hi-Link HLK-PM12 3W AC DC Isolated Power Module
$ 2.64
- Free Delivery Over $30 All Products
- 30 days easy returns if you change your mind
- Order before noon for same day dispatch
Guaranteed Safe Checkout
- 12V 0.25A Hi-Link HLK-PM12 3W AC DC Isolated Power Module 12V 0.25A Hi-Link This is a rather small module that can supply 5 volt from either 120VAC or 230VAC, this makes it perfect for small projects that needs a 12 volt supply from mains. Official specifications: Meet UL, CE requirements, All voltage input (AC: 100 ~ 240V) Low ripple and low noise Output overload and short circuit protection High efficiency, high power density The product is designed to meet the requirements of EMC and Safety Test Low power consumption, environmental protection, no-load loss <0.1W Operation Temperature: -20— 60°C Store Temperature: -40— 80°C Relative humidity: 5—95% Rated input voltage:100-240VAc Maximum input current: <0.2A Input current surge: <10A maximum input voltage: 270VAc Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69% Input High Voltage Efficiency: Vin=220VAc, output full-load: 70% Long-term reliability: MTBF 100000h Load rated output voltage: 5±0.1 Short-term maximum output current: 1000mA The maximum output current for a long time: 600mA Output ripple and noise: 50 mVpp Rated input voltage, full load. Using 20MHz of bandwidth, the load side with 10uF and 0.1uF capacitor Shell maximum surface temperature does not exceed 60°C SKU: CE-M0112-1 Category: Power Supply Tags: 12 supply, 12v 3W, 220 v to 12 v, 5V 1Amp, 5V smps, AC to Dc, hi-link, Isolate power module
